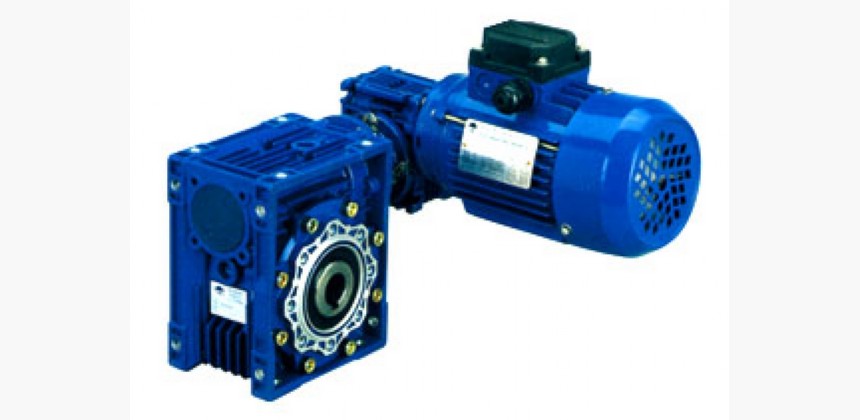

Combination worm gear units
IT is combined by two single step reducers and has all the vitues of them, with large ratio.
TPYE | RV Worm Gearbox |
Gearing Arrangement: | Worm |
Model | size:025,030,040,050,063,075,090,110,130,150 |
Ratio | 5,7.5,10,15,20,25,30,40,50,60,80,100 |
Color | Blue/Black/grey or on your request |
Materail | housing:Aluminum alloy |
Packing | Wooden box/Paper carton |
Bearing | C&U |
Seal | SKF |
Input power | 0.09KM-15KM |
IEC Flange | IEC standard flange or on request |
Usages | Foodstuffs, Ceramics, Packing, Chemicals, Pharmacy, Plastics, Paper-making, Machine-tools |
Lubricant | Shell or Henry |
STRUCTURE FEATURES
1、 Large in output torque.
2、 Smooth in running and low in noise, can work long time in dreadful conditions.
3、 High in radiating efficiency.
4、 Good-looking in appearance, durable in service life and small in volume.
5、 Suitable for omnibearing installation.
APPLICATION FIELD
Packing machinery、chemical machinery、environmental protection industries、 food machinery、auto assembling line machinery etc.
SURFACE PAINTING
Aluminum alloy housing:
1. Shot blasting and special antiseptic treatment on the aluminum alloy surface.
2. After phosphating,paint with RAL5010 blue or silvery white paint.
Cast iron housing:
First paint with red antirustpaint,then paint with RAL5010 blue or silvery white paint.
Housing: Alu dia casting from size 25-90
Iron Casting from size 110-150
Worm: 20CrMnTi with carburization to 58-62HRC
Worm wheel: Bronze CuSn 12-2
Ratio from 5-100 (Single kit),300-5000(Double kits)
Max Output Turque : 9650 Nm (Single kits)
